E-Bike Vision Battery Lite compatible to Bosch Active (Plus) / Performance (CX) drive system

10 Ah / 360 Wh
E-Bike Vision Battery Lite compatible to Bosch Active / Performance

Our E-Bike Vision Batteries Lite are compatible with the 36 V Bosch Active (Plus) Line and Performance (CX) Line drive systems and appertaining Bosch charger. This lightweight e bike battery can be effortlessly integrated into the proven system while offering excellent range at an affordable price. Simply insert and go.

Our E-Bike Vision Battery is available as a downtube and rear rack battery. The 360 Wh gives you enough power for daily work commutes and the E-Bike Vision Battery Lite is also the perfect companion for increasing your range for longer rides.

By using state-of-the-art lithium-ion technology in 21700 format, we’re able to achieve the smallest dimensions and minimise the weight. An advanced battery management system and intelligent cell balancing provide a long lifespan and safe e bike battery usage.

Note: Before using our E-Bike Vision Batteries, compatible with Bosch Active (Plus) / Performance (CX), we recommend a software update of the drive system (display/motor/original battery) at your specialist dealer.

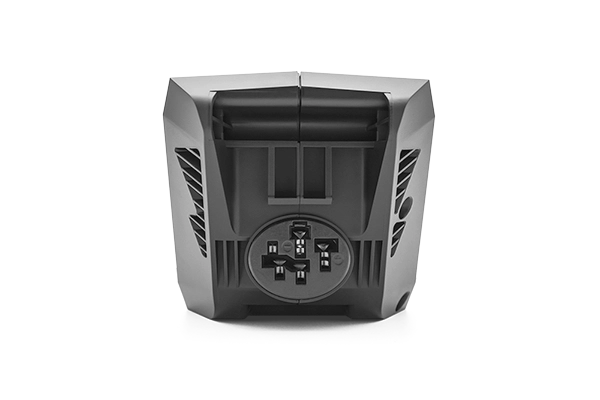

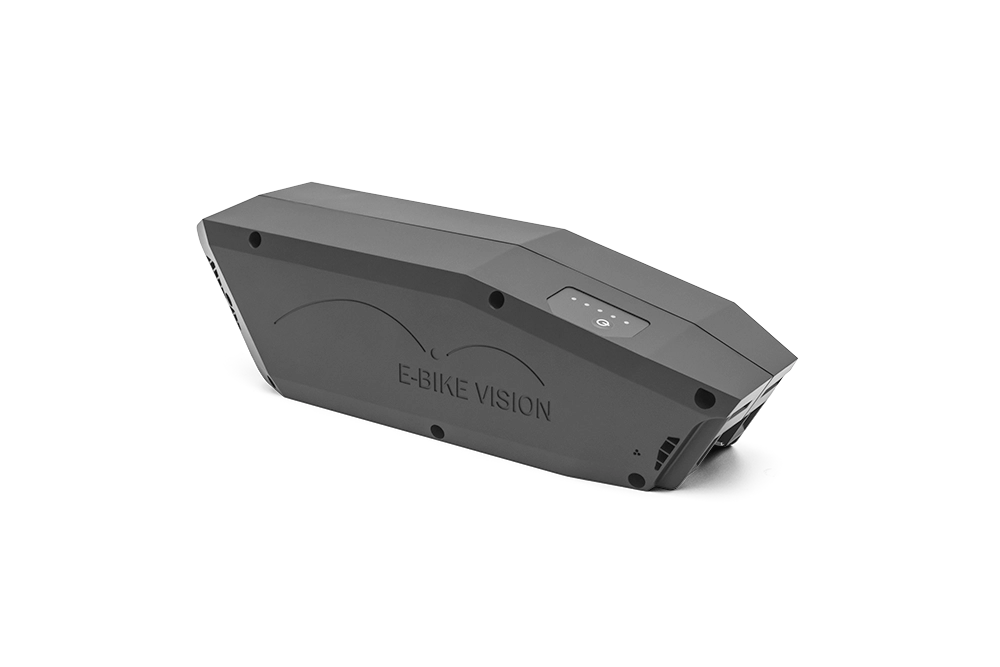

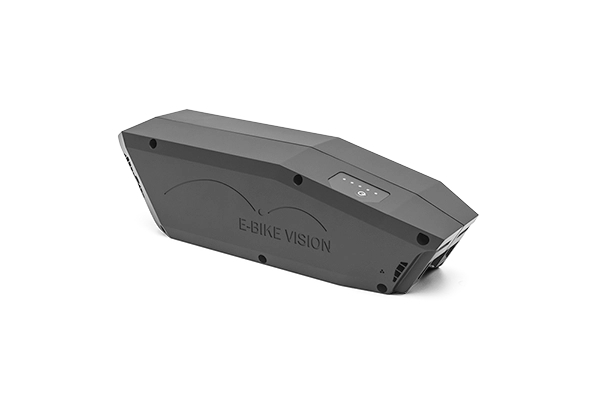

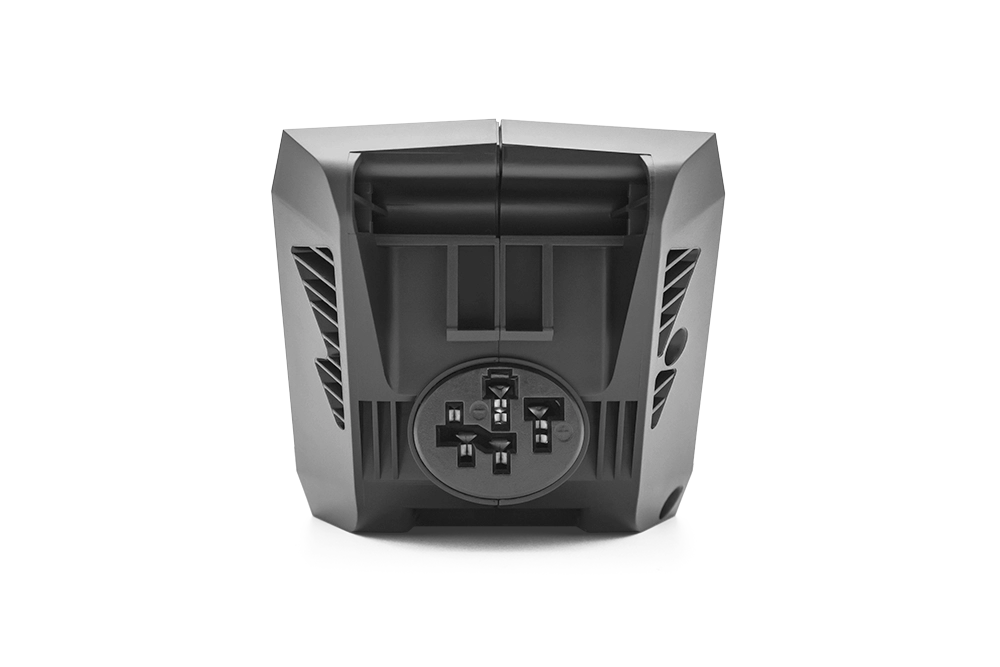

E-Bike Vision Battery Lite, compatible to Bosch Active (Plus) / Performance (CX) drive system Frame battery
E-Bike Vision Battery Lite, compatible to Bosch Active (Plus) / Performance (CX) drive system Frame battery

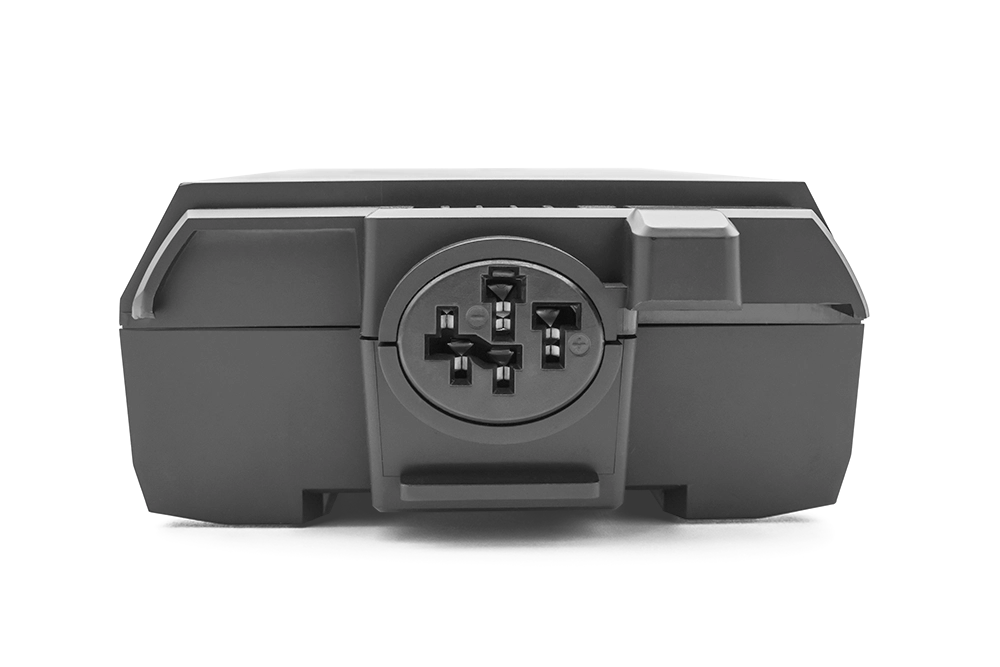

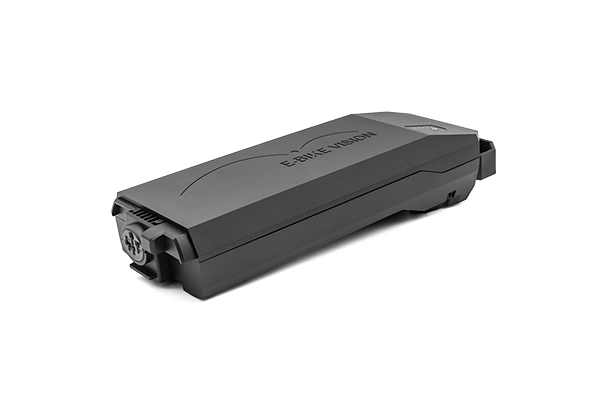

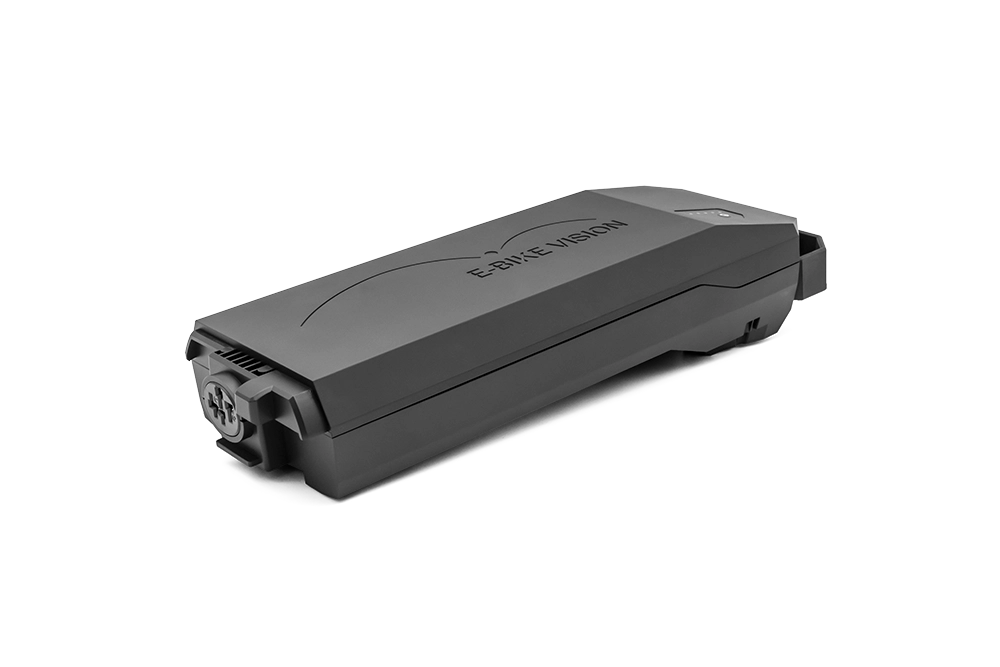

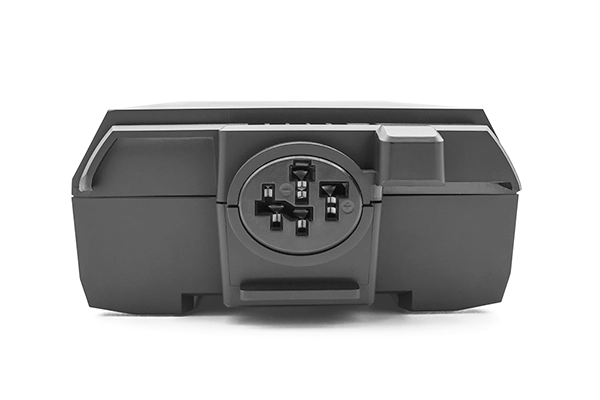

E-Bike Vision Battery Lite, compatible to Bosch Active (Plus) / Performance (CX) drive system Carrier battery
E-Bike Vision Battery Lite, compatible to Bosch Active (Plus) / Performance (CX) drive system Carrier battery

Click on the image for a larger view.

Product variants

PositionCapacityWeightRRPItem No.Dimensions
Frame battery10 Ah / 360 Wh1,8 kg449,- €10044Download
Carrier battery10 Ah / 360 Wh2,0 kg449,- €10045Download

Compatibility

  • Active Line
  • Active Line Plus
  • Performance Line
  • Performance Line CX
  • Compatible with original Bosch charger (2A, 4A, 6A)
  • Can be used optionally with the E-Bike Vision chargers (4A, 6A) with additional charging adapter
  • DualBattery-capable, exclusively for E-Bike Vision batteries (compatible with Bosch* Active / Performance drive system)
Use our AV-Toolbox app to check and update your E-Bike Vision battery

Data

  • Weatherproof and dust-tight
  • Integrated battery management system
    • Overload protection
    • Undercharging protection
    • Protection against high discharge currents
    • Short-circuit protection
    • Protection against temperatures that are too high/too low
    • Intelligent cell balancing
    • Single cell monitoring
  • Made in Germany
  • UN-certified
  • 24-month guarantee

Is the battery an alternative to my original battery?
Check the compatibility with our list of original batteries

Check compatibility

Range test according to R200 standard

Range test

Manual
Additional instructions are available in the download area

Manual
